Fluke 405 Laser Distance Meter 50 m

Specifications: Fluke 404E/406E/405/408/410 Laser Distance Meter

Model	Fluke 404E	Fluke 406E	Fluke 405	Fluke 408	Fluke 410
Specifications
Range	0.2 to 40 m	0.2 to 60 m	0.2 to 50 m	0.2 to 80 m	0.2 to 100 m
Accuracy* in favorable condition**	±(2.0mm+5×10^-5D)		±(2.0mm+5×10^-5D)
Accuracy in unfavorable condition***	±(3.0mm+29×10^-5D)		±(3.0mm+29×10-5D)
Angle accuracy	±(0.3°+0.1°+0.01*A), A is up to ±45° in each quadrant
Angel measurement method	Electronic
Measurement unit	m / ft / in / ft+in
Display	1.6 inch, segment alphanumeric display		2.0-inch positive display
* Temperature for specified accuracy: 25°C Favorable conditions: white and diffuse reflection objects (white painted walls) ,low background illumination and moderate temperature * Unfavorable conditions: objects with low or high reflectivity, high background illumination or the temperature is at the upper or lower limit of the specified temperature range
Measurements
Single measurement	●	●	●	●	●
Continuous measurement	●	●	●	●	●
Area measurement	●	●	●	●	●
Volume measurement	●	●	●	●	●
Auto Leveling	●	●	●	●	●
Auto Vertical	●	●	●	●	●
Pythagoras 1	●	●	●	●	●
Pythagoras 2	●	●	●	●	●
Plus-minus method	●	●	●	●	●
Measurement reference	Front / Back		Front / Tripod hole / Back / Extender
Auto-off	3 minutes after inactivity		3 minutes after inactivity
History measurement data	30 sets		100 sets
Time-delay measurement			●	●	●
Auto calibration			●	●	●
Side button			●	●	●
Extender			●	●	●
General
Laser class	Class 2
Laser type	630 to 670nm, <1mW
Battery life	up to 5000 measurements (single measurement)		up to 3500 measurements (single measurement)
Operating temperature	0 C° to 40 C°
Storage temperature	-10 C° to 60 C°
Ingress protection	IP54		IP65
Drop test	1 m		1 m
Size	50 mm × 115mm × 29mm		52 mm × 116mm × 28mm
Weight	100g		110g
Certification
Laser certification	IEC 60825-1: Class 2, 635 nm, <1 mW CPA, CE
Electrical certification	IEC 61010-1: Pollution Degree 2 EMC： IEC 61326-1: Industrial Electromagnetic Environment CISPR 11: Group 1, Class A
Packaging and accessories
Packaging box	Folding box	Folding box	Full telescope	Full telescope	Full telescope
User manual	√	√	√	√	√
Vinyl carrying pouch	√	√	√	√	√
Battery	2 AAA alkaline cells	2 AAA alkaline cells	2 AAA NiMH rechargeable cells	2 AAA NiMH rechargeable cells	2 AAA NiMH rechargeable cells
Qualification certificate	√	√	√	√	√
Lanyard			√	√	√
Charging cable			Type-C cable, 0.5m	Type-C cable, 0.5m	Type-C cable, 0.5m

Add to Wishlist

Category: Fluke

Description

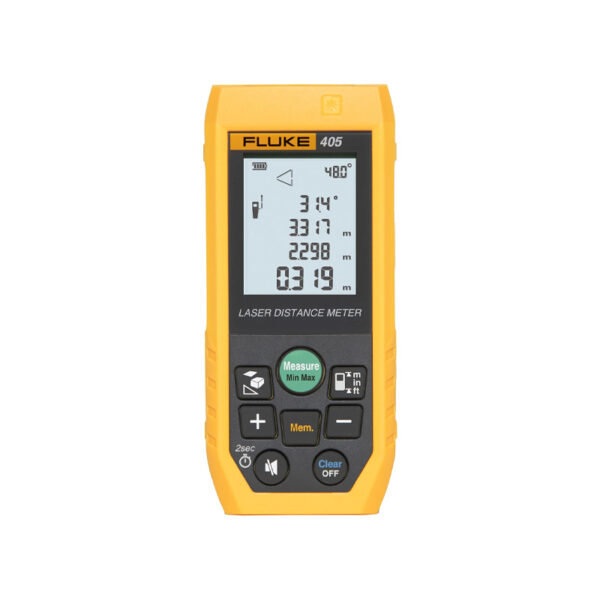

The Fluke 405 Laser Distance Meter is a versatile measuring tool designed for accurate distance measurements up to 40 meters. Powered by 2 AA batteries, it features a bright LCD display for easy reading and a built-in 635 nm laser diode for precision. This lightweight device (95g) operates in temperatures from 0°C to 40°C and is rugged, being waterproof, dustproof, and IP54 rated. With an automatic power-off feature after 180 seconds, it offers approximately 3000 measurements on a single battery set. Ideal for both indoor and outdoor use, the Fluke 405 is essential for industrial applications requiring reliable distance measurement.

Features:

Measurement Range: Measures distances up to 40 meters.
Power Source: Operates on 2 AA batteries, offering approximately 3000 measurements per set.
Laser Diode: 635 nm laser with low power (P<1 mW) for precision.
Display: Large, easy-to-read LCD screen.
Durability: Waterproof and dustproof with an IP54 rating; 1m drop tested.
Automatic Power Off: Activates after 180 seconds of inactivity to conserve battery.
Weight: Lightweight at 95g for easy portability.
