Fluke 101 Digital Multimeter Clamp Kit

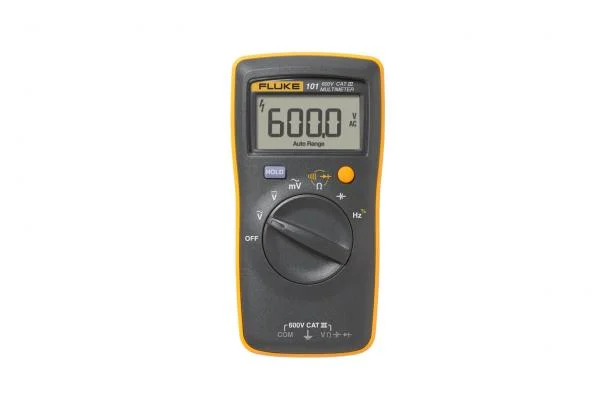

Fluke 101 Basic Digital Multimeter

Electrical specifications
V AC (40-500Hz)	Range	600.0 mV 6.000 V 60.00 V 600.0 V
	Resolution	0.1 mV 0.001 V 0.01 V 0.1 V
	Accuracy	3.0% ±3 digit 1.0% ±3 digit
V DC	Range	6.000 V 60.00 V 600.0 V
	Resolution	0.001 V 0.01 V 0.1 V
	Accuracy	0.5% ±3 digit
Resistance Ohms	Range	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
	Resolution	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
	Accuracy	0.5% ±3 digit 0.5% ±2 digit 0.5% ±2 digit 0.5% ±2 digit 0.5% ±2 digit 1.5% ±3 digit
Capacitance	Range	50.00 nF 500.0 nF 5.000 µF 50.00 µF 100.0 µF
	Resolution	0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF
Frequency (10 Hz – 100 kHz)	Range	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz
	Resolution	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz
Duty cycle	Range	0.1% to 99.9%
	Resolution	0.1%
General specifications
CAT rating	CAT III 600 V
V AC range	600.0 V
V DC range	600.0 V
Ohms range	40.00 MΩ
Auto shutoff	Y
Continuity	Y
Capacitor	100.0 µF
Frequency	100.0 kHz
Hold	No
Duty cycle	Yes
Size	130 x 65 x 27mm
Weight	160 g
Battery	Two AAA
Warranty	1 year
Environmental specifications
Operating temperature	0 °C to +40 °C
Storage temperature	-30 °C to +60 °C
Operating humidity	Non condensing (<10 °C) <=90% RH (at 10 °C to 30 °C) <=75% RH (at 30 °C to 40 °C) (Without condensation)
Operating humidity, 40 MΩ	80% RH 10 °C to 30 °C, 70% RH 30 °C to 40 °C
Operating altitude	2,000 meters
Storage altitude	12,000 meters
IP rating	IP 40 per IEC 60529
Vibration requirements	MIL-PRF-28800F, Class 2
Drop test requirements	-10°C and 1 meter to surface, per IEC-61010-1, and Fluke SOP 39.1 for portable Hand-held equipment Shipping container drop per Fluke SOP 39.
EMI, RFI, EMC	Must meet all applicable requirements in IEC/EN 61326-1
Absorption/corrosion	Per Fluke SOP 39.1
Temperature coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 ºC
